any one have pics of a wheelie bar and how it mounts to a banshee frame.....

dave.. did u ever get urs made ??


·
Premium Member
Joined
·
2,469 Posts
I can get a picture of a bar i made for the 450 but plan on using it on my shee and 450 i will just make a different top bar.


·
Premium Member
Joined
·
2,469 Posts

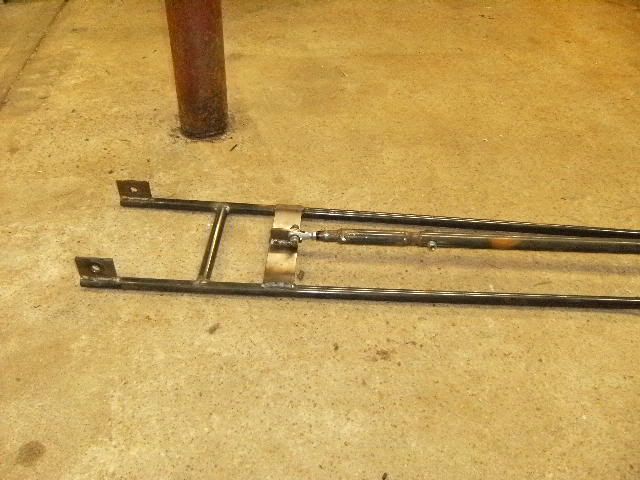

Here are a few pic's.

The little tabs @ the top i had to put on @ the last minute becasue it was moving alot and i didn't like it.

But i will be changing it before i run it again.





This was my first bar i made and was just winging it.


·
Registered
Joined
·
1,030 Posts
Bump this to the top, lookin to have one made and need some ideas. still haven't decided on a swinger length, is there a way to make one that has alot of adjustment in it?


·
Premium Member
Joined
·
2,469 Posts
You can have one made with like 1 1/2" thread on your heims that will give you quite a bit of adjustment's.

Then you could make one with extra hole's where the heims would mount and give you a coarse adjustment and then use the heim thread's for a fine adjustment.


·
Registered
Joined
·
220 Posts

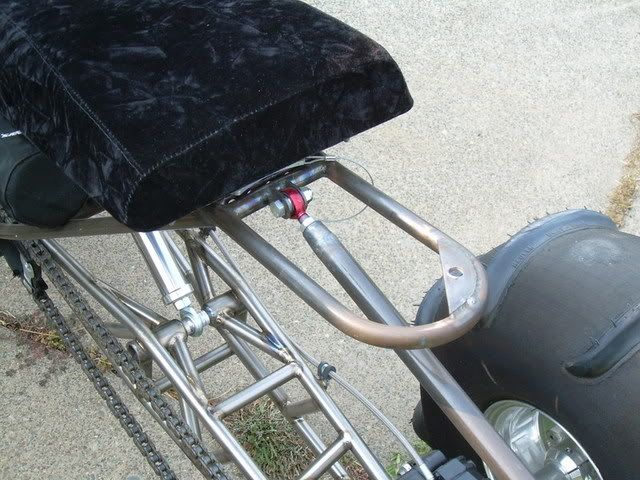

This is the one i made for my Honda... It would be simple to make one for a shee , maybe go off the grab bar mounts with duel top bars??? or if you wanted to weld a bar into the top like i did on my 250R you could run a single top...





·
Registered
Joined
·
1,003,688 Posts
Discussion Starter #10
how do u like ur bar ,jt ??
have u got use to it ??


·
Registered
Joined
·
1,061 Posts
love it man!! not really any faster, but you can be alot more consistent!! one less thing to think about when ya are on the line!!


·
Premium Member
Joined
·
2,469 Posts
I made my bar like Ziggy said and you can't even tell it is back there, well other than not having to let off.


·
Registered
Joined
·
1,061 Posts
only time I know its there is when it hooks a rut and sends the bike one way or the other.


·
Registered
Joined
·
1,003,688 Posts
Discussion Starter #14
bobby i may have to hit u up when i get my shee runnin... u think u could make me one ??? hmmmm ... please


·
Premium Member
Joined
·
2,469 Posts
Yes i can Rico but i will need all kinds of measurements for it to be perfect with out me having the bike.


·
Premium Member
Joined
·
3,418 Posts
Man...am I off the radar on this one.
Rico...I'll get you pics of my setup as well.
I really gotta clean and paint my setup....
I finally got a chance to cut and customize my top inner/outer tube for the height adjustments I need. I can put it on the ground now....or 2 foot in the air within 20 or 30 seconds...very easily.
